AEROCK R EC
WATER FAN HEATERS with EC motor
QUALITY THAT WARMS YOU UP
ENERFY-EFFICIENT
AND QUIET EC MOTORS
AND QUIET EC MOTORS
3-YEARS
WARRANTY
WARRANTY
INTELLIGENT AND ADVANCEDWIFI CONTROL
MODERNDESIGN
+
+
+
+
+

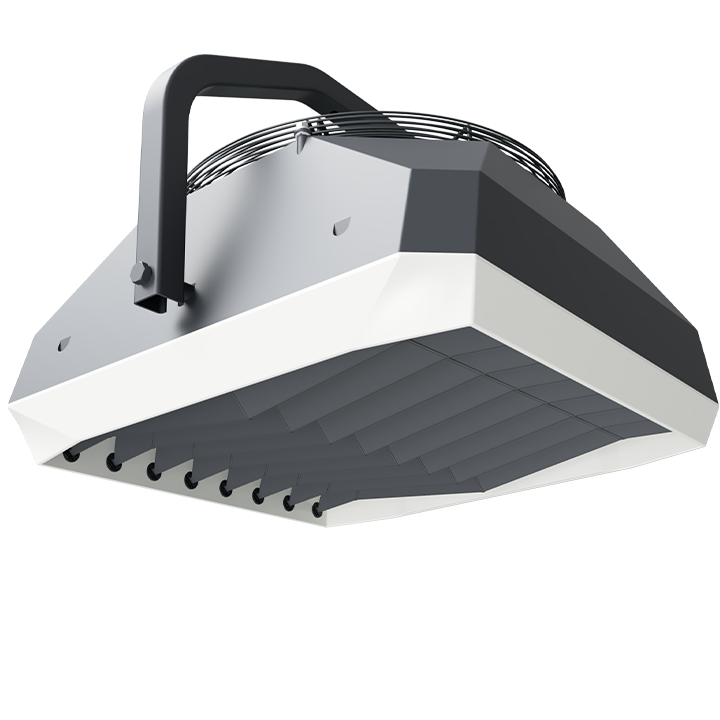

INNOVATIVE CASING DESIGN
Thin side edge and unique
corner shape give the destratifier a modern look
AERODYNAMIC AIR GUIDE SHAPE
Ensures minimal air flow
resistance
INNOVATIVE AIR GUIDE REGULATION SYSTEM
Allows full regulation
STRONG AND INVISIBLE LOCKS CONNECTING FRONT AND BACK OF THE
CASING
Ensure easy and quick
disassembly of the front part of the casing
DURABLE CASING
Carefully selected materials
ensure high resistance to mechanical damage and guarantee color durability
+
+
+
+
IDEALLY FITTED CASING
Ensures maximum air
output

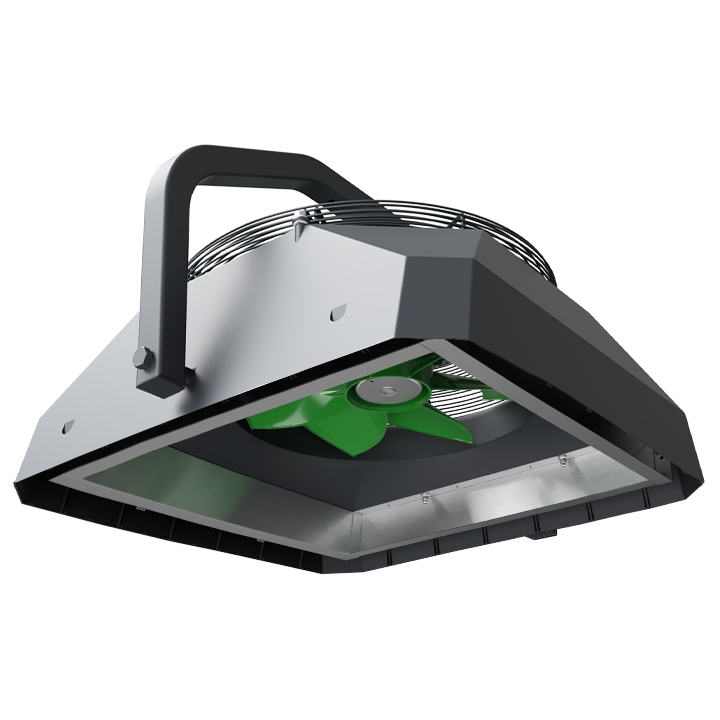

PROPERLY DESIGNED DIFFUSER
Integration with the back of
the casing ensures full utilization of air output
DEDICATED FAN GRID
Designed for the AEROCK
heater, guarantees maximum technical performance
PROPER AIR GUIDE SHAPE
In conjunction with other
elements of the device, ensures low noise levels
+
+
+
+
+

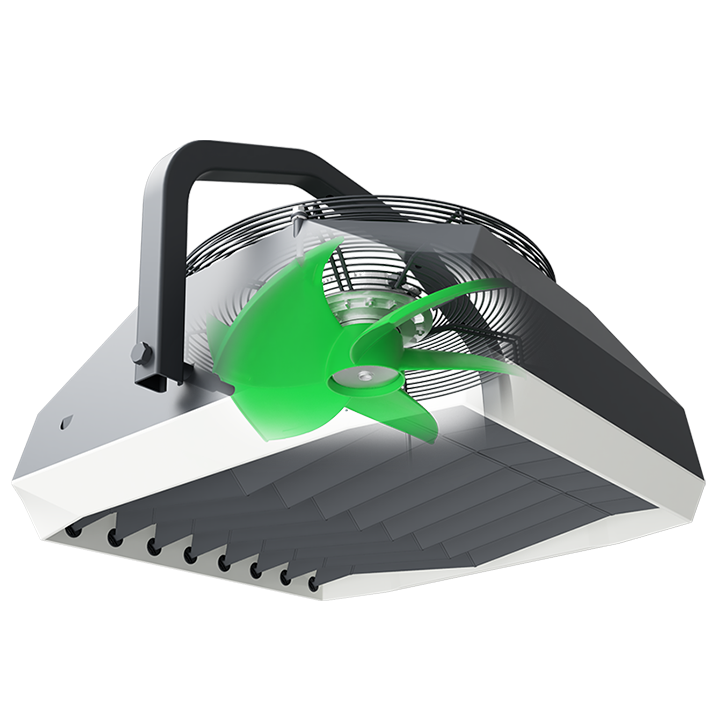

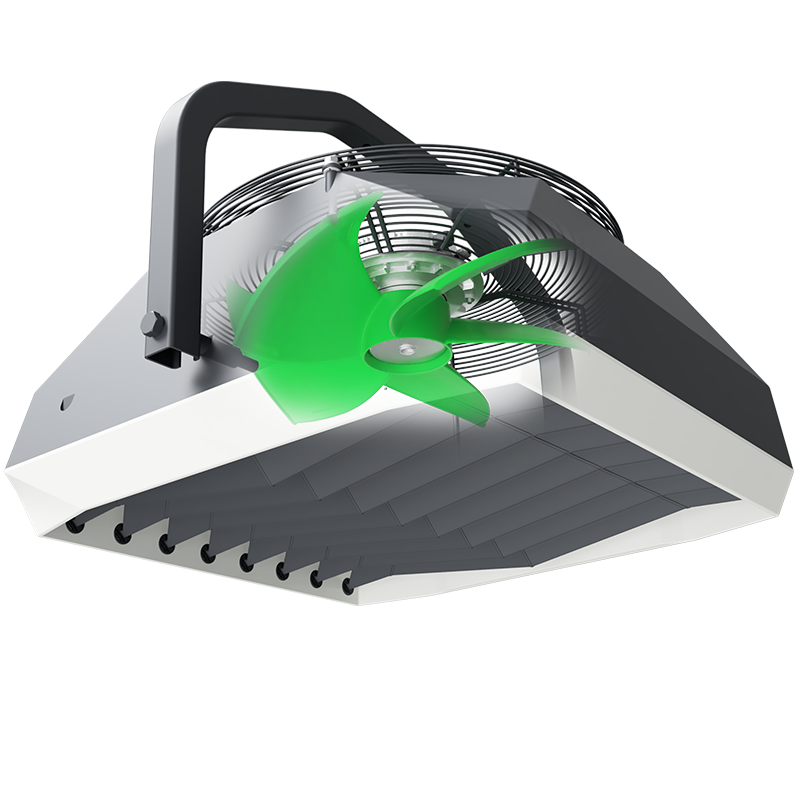

ENERGY-EFFICIENT
EC FANS Provide maximum efficiency of the device at low operating costs
EC FANS Provide maximum efficiency of the device at low operating costs
HIGH-PERFORMANCE EC MOTORS
Allow smooth 0-10V fan
control
MULTIPLE CONTROL OPTIONS
- Direct connection to the controller
- Control via an app
- Connection to BMS system
RECYCLING
Used materials meet the latest
recycling standards
ECOLOGY
Our devices are produced with
the utmost care for the environment
AVAILABLE MODELS
AEROCK MINI R2
AEROCK MINI R3
AEROCK MINI RD
AEROCK R1
AEROCK R2
AEROCK R3
AEROCK R4
AEROCK RD
AEROCK MINI R2
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 2150 | 1550 | 1100 | |||
| Noise Level (dB/A) | 52 | 50 | 42 | 40 | 29 | 27 |
| Motor Power (W) | 120 | 115 | 68 | 65 | 53 | 50 |
| Electricity Consumption (W) | 115 | 110 | 64 | 64 | 50 | 48 |
| Horizontal Range (m) | 14 | 8 | 5 | |||
| Vertical Range (m) | 8 | 5 | 3 | |||
| Heating power range [kW] | 2 - 21 | |||||
DIMENSIONS
AEROCK MINI R3
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 2050 | 1450 | 1100 | |||
| Noise Level (dB/A) | 52,7 | 48,6 | 44,4 | 40,9 | 31,1 | 29,1 |
| Maximum Current Draw (A) | 0,5 | 0,89 | 0,3 | 0,4 | 0,3 | 0,3 |
| Motor Power (W) | 120 | 115 | 68 | 65 | 53 | 50 |
| Electricity Consumption (W) | 115 | 110 | 64 | 64 | 50 | 48 |
| Horizontal Range (m) | 12 | 7 | 4 | |||
| Vertical Range (m) | 7 | 4 | 3 | |||
| Heating power range [kW] | 2 - 28 | |||||
DIMENSIONS
AEROCK MINI RD
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 2350 | 1850 | 1250 | |||
| Noise Level (dB/A) | 49 | 50 | 39 | 39 | 27 | 27 |
| Maximum Current Draw (A) | 0,5 | 0,89 | 0,3 | 0,4 | 0,3 | 0,3 |
| Motor Power (W) | 120 | 115 | 68 | 65 | 53 | 50 |
| Electricity Consumption (W) | 115 | 110 | 64 | 64 | 50 | 48 |
| Horizontal Range (m) | 16 | 10 | 7 | |||
| Vertical Range (m) | 9 | 7 | 5 | |||
DIMENSIONS
AEROCK R1
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 5350 | 3750 | 2650 | |||
| Noise Level (dB/A) | 56 | 56 | 51 | 50 | 40 | 39 |
| Maximum Current Draw (A) | 1,9 | 2,3 | 1,1 | 1,4 | 0,9 | 0,9 |
| Motor Power (W) | 290 | 340 | 230 | 260 | 200 | 200 |
| Electricity Consumption (W) | 277 | 280 | 224 | 220 | 183 | 140 |
| Horizontal Range (m) | 23 | 20 | 15 | |||
| Vertical Range (m) | 12 | 9 | 7 | |||
| Heating power range [kW] | 2 - 30 | |||||
DIMENSIONS
AEROCK R2
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 4900 | 3550 | 2450 | |||
| Noise Level (dB/A) | 56 | 56 | 51 | 50 | 40 | 39 |
| Maximum Current Draw (A) | 1,9 | 2,3 | 1,1 | 1,4 | 0,9 | 0,9 |
| Motor Power (W) | 290 | 340 | 230 | 260 | 200 | 200 |
| Electricity Consumption (W) | 277 | 280 | 224 | 220 | 183 | 140 |
| Horizontal Range (m) | 22 | 19 | 14 | |||
| Vertical Range (m) | 11 | 8 | 6 | |||
| Heating power range [kW] | 3 - 51 | |||||
DIMENSIONS
AEROCK R3
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 5750 | 4150 | 2950 | |||
| Noise Level (dB/A) | 56 | 57 | 50 | 51 | 44 | 44 |
| Maximum Current Draw (A) | 2,3 | 2,54 | 1,6 | 1,5 | 1,2 | 1,1 |
| Motor Power (W) | 460 | 440 | 340 | 320 | 280 | 260 |
| Electricity Consumption (W) | 435 | 405 | 324 | 290 | 265 | 200 |
| Horizontal Range (m) | 25 | 22 | 16 | |||
| Vertical Range (m) | 12 | 9 | 7 | |||
| Heating power range [kW] | 6 - 73 | |||||
DIMENSIONS
AEROCK R4
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 5000 | 3900 | 2950 | |||
| Noise Level (dB/A) | 51 | 52 | 40 | 40 | 29 | 28 |
| Maximum Current Draw (A) | 2,3 | 2,54 | 1,6 | 1,5 | 1,2 | 1,1 |
| Motor Power (W) | 460 | 440 | 340 | 320 | 280 | 260 |
| Electricity Consumption (W) | 435 | 405 | 324 | 290 | 265 | 200 |
| Horizontal Range (m) | 22 | 18 | 11 | |||
| Vertical Range (m) | 10 | 8 | 6 | |||
| Heating power range [kW] | 8 - 94 | |||||
DIMENSIONS
AEROCK RD
TECHNICAL PARAMETERS
| Fan Speed | AC III | EC III | AC II | EC II | AC I | EC I |
| Fan Performance (m3/h) | 6650 | 5500 | 4000 | |||
| Noise Level (dB/A) | 55 | 56 | 49 | 50 | 42 | 43 |
| Maximum Current Draw (A) | 2,3 | 2,54 | 1,6 | 1,5 | 1,2 | 1,1 |
| Motor Power (W) | 460 | 440 | 340 | 320 | 280 | 260 |
| Electricity Consumption (W) | 435 | 405 | 324 | 290 | 265 | 200 |
| Horizontal Range (m) | 28 | 24 | 19 | |||
| Vertical Range (m) | 15 | 11 | 9 | |||
DIMENSIONS
ACCESSORIES
 |
 |
 |
 |
 |
|
| Wall controller for 3-speed AC fan | On/Off wall thermostat | ARW 3.0/2 regulator | HMI controller with WiFi for EC fan (0-10V) | Potentiometer with thermostat for EC fan (0-10V) | |
| Item number | 1-4-1001 | 1-4-1010 | 1-4-1011 | 1-4-1003 | 1-4-1006 |
| Power supply | 1~230V/50Hz | 1~230V/50Hz | 1~230V/50Hz | 1~230V/50Hz | 1~230V/50Hz |
| Max. load current | 6(3)A for 230V AC |
3A for 230V AC |
3A for 230V AC |
1A for 230V AC and 0.02A for 0-10V DC |
0.02A for 0-10V DC |
| Output signal | on-off | on-off | on-off | 0-10V DC | 0-10V DC |
| Temperature adjustment range | 5 – 30°C | 5 – 30°C | ... | 5 – 30°C | 5 – 30°C |
| Temperature measurement | internal temperature sensor |
internal temperature sensor |
... | internal temperature sensor |
internal temperature sensor |
| Degree of protection | IP30 | IP30 | IP54 | IP20 | IP30 |
| Mounting method | surface-mounted | surface-mounted | surface-mounted | surface-mounted | surface-mounted |
| MAXIMUM NUMBER OF DEVICES THAT CAN BE CONNECTED TO OUR CONTROLLER | |||||
| AEROCK MINI R2 / MINI R3 / MINI RD | 4 | 4 | 4 | 10 | 10 |
| AEROCK R1 / R2 | 2 | 2 | 2 | 10 | 10 |
| AEROCK R3 / R4 / RD | 1 | 1 | 1 | 10 | 10 |
 |
 |
|
| 2-way valve with 3/4" actuator | NTC temperature sensor for EC controller | |
| Item number | 1-4-1004 | 1-4-1007 |
| Internal thread diameter | 3/4 inch | - - - |
| Power supply | - - - | |
| Max. working pressure | 0.9 MPa | - - - |
| Flow coefficient kvs | 4.5m3/h | - - - |
| Ambient working conditions | 0 - 60°C | -20°C - +70°C |
| Degree of protection | IP54 | IP66 |
| Opening/closing time | 3/3 min | - - - |
| Operation mode | on-off | - - - |
| Measuring range | - - - | -20°C - +70°C |
| Measuring element | - - - | NTC 10K |
| Mounting method | surface-mounted | - - - |
| Max. signal wire length | - - - | 100m |
